Design and Evaluation of a Temperature–Humidity Control System for Mushroom Cultivation Using a DHT11 Sensor
##plugins.themes.bootstrap3.article.sidebar##
##plugins.themes.bootstrap3.article.main##
Abstract

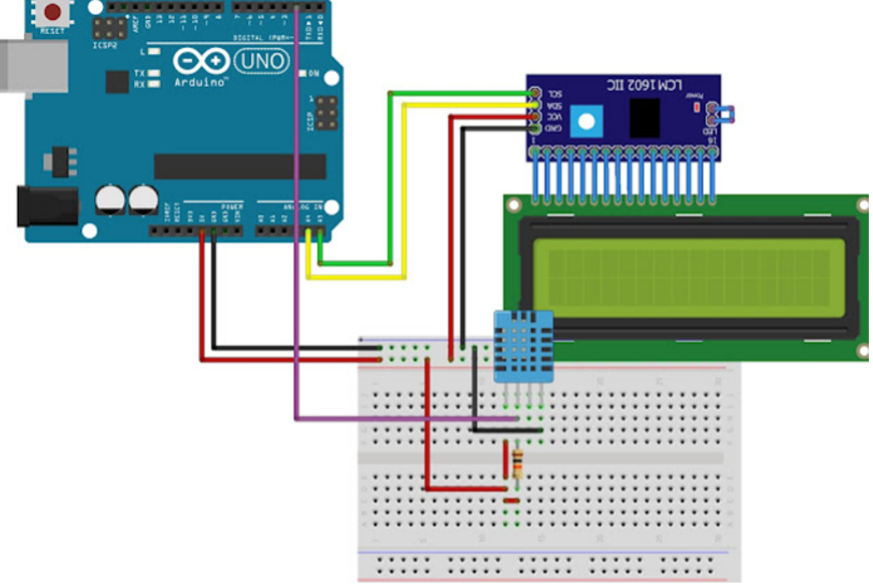

Oyster mushroom (Pleurotus ostreatus) cultivation requires stable temperature and humidity conditions to support optimal mycelial development and fruiting body formation. This study aims to develop and evaluate a low-cost temperature–humidity monitoring and control system for an oyster mushroom cultivation room using a DHT11 sensor integrated with an Arduino-based controller. An experimental evaluation was conducted by comparing DHT11 temperature and humidity readings with a reference measuring instrument under cultivation-room conditions, while the control function was tested using threshold-based rules for activating environmental actuators (heater, fan, and humidifier). The results indicate that the DHT11 sensor produced measurements close to the reference instrument within the tested range, with temperature differences of 0.1–0.3°C and humidity differences of 0.2–0.4%RH across the observations. These findings suggest that the proposed system is feasible for basic environmental monitoring and supports automated threshold-based control for maintaining cultivation conditions near recommended ranges. Sensor performance and measurement stability are influenced by practical factors such as airflow, proximity to heat or moisture sources, and sensor placement; therefore, appropriate placement and shielding are important to minimize local bias. The originality of this work lies in providing an implementable prototype and an empirical sensor performance assessment in a mushroom cultivation environment, offering practical guidance for low-cost smart farming applications.
##plugins.themes.bootstrap3.article.details##
This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.
Authors who publish articles in CoreID Journal agree to the following terms:
- Authors retain copyright of the article and grant the journal right of first publication with the work simultaneously licensed under a CC-BY-SA or The Creative Commons Attribution–ShareAlike License.
- Authors are able to enter into separate, additional contractual arrangements for the non-exclusive distribution of the journal's published version of the work (e.g., post it to an institutional repository or publish it in a book), with an acknowledgment of its initial publication in this journal.
- Authors are permitted and encouraged to post their work online (e.g., in institutional repositories or on their website) prior to and during the submission process, as it can lead to productive exchanges, as well as earlier and greater citation of published work (See The Effect of Open Access).
References
S. A. Olaniyan, J. B. Hussein, M. O. Oke, B. A. Akinwande, T. S. Workneh, B. B. Maziya-Dixon, & I. A . Adeyemi."Evaluating cassava peel-based substrates on the yield and nutritional quality of oyster mushroom (Pleurotus ostreatus)". Discover Food, vol. 5, no. 1, pp. 1-13, 2025.
H. T. K. Huyen, et al. "Sustainable application of medicinal residue as a replacement substrate for Gray Oyster mushroom (Pleurotus ostreatus) cultivation." E3S Web of Conferences. Vol. 621. EDP Sciences, 2025.
KABAY, T., TURHAN, A. S., & SENSOY, S. (2025). The Effect of Low Temperature Applied During Carpophore Formation on The Development and Nutritional Content of Oyster Mushrooms (Pleurotus ostreatus (Jacq. ex Fr.) P. Kumm (1871) and P. citrinopileatus Singer). MAS Journal of Applied Sciences, 10(1), 22-31.
R. S. Jarial, Kumud Jarial, and J. N. Bhatia. "Comprehensive review on oyster mushroom species (Agaricomycetes): Morphology, nutrition, cultivation and future aspects," Heliyon vol. 10, no. 5, 2024.
A. Elewi, A. Hajhamed, R. Khankan, S. Duman, A. Souag, & A. Ahmed. "Design and implementation of a cost-aware and smart oyster mushroom cultivation system," Smart Agricultural Technology, vol. 8, 100439, 2024.
G. L. Akhil, Comparative evaluation of different species of oyster mushroom suitable to Kerala. Diss. Department of Plant Pathology, College of Agriculture, Padannakkad, 2022.
E. Dawadi, et al. "Nutritional and post-harvest quality preservation of mushrooms: A review." Heliyon, vol. 8, no. 12, 2022.
H. Yanru, et al. "Effects and mechanism of the mycelial culture temperature on the growth and development of Pleurotus ostreatus (Jacq.) P. Kumm." Horticulturae, vol. 9, no.1, 2023.
M. R. Masevhe, Influence of Cultivation Practices on Yield and Post-Harvest Quality of Oyster Mushrooms (Pleurotus Ostreatus) (Doctoral dissertation, University of Pretoria (South Africa)), 2023.
E. Keshamma, S. N. R. Srusti, & N. P. Devidas. Mushroom farming. Book Saga Publications, 2022.
J. L. Chong, et al. "Internet of things (IoT)-Based environmental monitoring and control system for home-based mushroom cultivation." Biosensors, vol. 13, no. 1, 2023.
B. H. Kong, Y. H. Y. Yap, & S. Y. Fung. "Medicinal properties of wild and cultivated mushrooms from the tropics: Malaysia as a case study," In Forest Microbiology (pp. 255-273). Academic Press 2025.
B. C. Wibowo, I. A. Rozaq, & T. P. Pratama. Implementation Of Monitoring and Control Temperature and Humidity Based on IoT in The Oyster Mushroom Cultivation Room. PROtek J. Ilm. Tek. Elektro, vol. 10, no. 2, 85, 2023.
P. Wolkoff, K. Azuma, & P. Carrer. Health, work performance, and risk of infection in office-like environments: The role of indoor temperature, air humidity, and ventilation. International Journal of Hygiene and Environmental Health, 233, 113709, 2021.
M. H. Zahir, K. Irshad, M. Shafiullah, N. I. Ibrahim, A. K. Islam, K. O. Mohaisen, , & F. A. A. Sulaiman. Challenges of the application of PCMs to achieve zero energy buildings under hot weather conditions: A review. Journal of Energy Storage, vol. 64, 107156, 2023.
Hampo, C. C., Schinasi, L. H., & Hoque, S. "Surviving indoor heat stress in United States: A comprehensive review exploring the impact of overheating on the thermal comfort, health, and social economic factors of occupants,". Heliyon, vol. 10, no.3, 2024.
S. Stroeve, B. Kirwan, O. Turan, R.E. Kurt, B. van Doorn, L. Save, ... & S. Pozzi, "SHIELD human factors taxonomy and database for learning from aviation and maritime safety occurrences," safety, vol 9, no. 1, 2023.
M. Javaid, et al. "Understanding the adoption of Industry 4.0 technologies in improving environmental sustainability." Sustainable operations and computers, vol. 3, 2022: 203-217.
C. J. T. Niog, et al. "IoT-Based Climate Control System for Cultivation of Oyster Mushroom (Pleurotus ostreatus) Fruiting Bag." International Exchange and Innovation Conference on Engineering & Sciences, 2024.
M. A. Islam, et al. "An automated monitoring and environmental control system for laboratory-scale cultivation of oyster mushrooms using the Internet of Agricultural Thing (IoAT)." Proceedings of the 2nd international conference on computing advancements. 2022.
N. Azman, M. Habiburrohman, & E. R. Nugroho, "Development of a Remote Straw Mushroom Cultivation System Using IoT Technologies," J. Ilm. Tek. Elektro Komput. dan Inform., vol. 9, no. 3, 872-894, 2023.
F. A. Yudithia, & D. L. Herda, "Smart Air Humidifier For Air-conditioned Rooms Based On NodeMCU ESP8266," JATAED: Journal of Appropriate Technology for Agriculture, Environment, and Development, vol. 1, no. 2, pp. 54-58, 2024.
K. E. Ukhurebor, C. O. Adetunji, O. T. Olugbemi, W. Nwankwo, A. S. Olayinka, C. Umezuruike, & D. I. Hefft, "Precision agriculture: Weather forecasting for future farming. In Ai, edge and iot-based smart agriculture (pp. 101-121). Academic Press, 2022.
A. S. George, & A. H. George. “Optimizing poultry production through advanced monitoring and control systems,” Partners Universal International Innovation Journal, vol. 1, no. 5, pp. 77-97, 2023.
M. Harshini, & R. Vadivel. “IoT based weather monitoring system for temperature, humidity, rainfall and seismic detection in real time,” World Journal of Advanced Research and Reviews, vol. 21, no. 3, pp. 812-822, 2024.
